Rebar Steel

GR-60 Hot Drawn

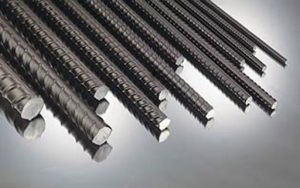

Rebar (short for reinforcing bar), collectively known as reinforcing
steel and reinforcement steel, is a steel bar or mesh of steel wires used as a tension device in reinforced concrete and reinforced masonry structures to strengthen and hold the concrete in compression.

Concrete is strong under compression, but has weak tensile strength. Rebar
significantly increases the tensile strength of the structure. Rebar surface is often patterned to form a better bond with the concrete. The most common type of rebar is carbon steel, typically consisting of hot-rolled round bars with deformation patterns.

Other readily available types include stainless steel, and composite sections made of glass fiber, carbon fiber, or basalt fiber.

These alternate types tend to be more expensive or have lesser mechanical properties and are thus more often used in specialty construction where their physical characteristics fulfill a specific performance requirement that carbon steel does not provide.

In practice, any material with sufficient tensile strength that is materially compatible with concrete could potentially be used to reinforce concrete, for example bamboo might be considered a viable substitution in regions where steel is not available.

Steel and concrete have similar coefficients of thermal expansion, so a concrete
structural member reinforced with steel will experience minimal stress as the
temperature changes.

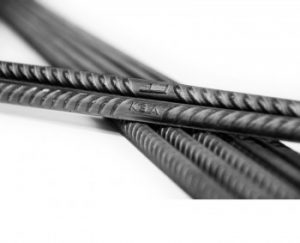

Rebars can be identified by marks inscribed on to the surface of one side of rebar as per SASO ASTM 615 M and SASO ASTM 706M standards

The precise process control adopted at results in clean steel with very low content of undesirable residual elements, higher yield strength, good ductility and better bending properties of the steel bar. The lower carbon equivalent values used in also make them readily weldable, particularly for the applications requiring low heat input like tack welding.

Standard Diameter mm Grade Nominal Strength MPa (min.) Yield Strenght MPa (min.) Tensile to Yield Ratio (min.) Tensile in 200mm (min.) Elongation (A5) (min.) Elongation (min.) Agt %
130 x 130 0.40 0.45 1.50 0.05 0.05 0.05 0.05 0.05
150 x 150 0.93 0.60 1.50 0.05 0.05 0.05 0.05 0.05
150 x 150 0.93 0.60 1.50 0.05 0.05 0.05 0.05 0.05
150 x 150 0.93 0.60 1.50 0.05 0.05 0.05 0.05 0.05
150 x 150 0.93 0.60 1.50 0.05 0.05 0.05 0.05 0.05
150 x 150 0.93 0.60 1.50 0.05 0.05 0.05 0.05 0.05

REINFORCING BARS

SABIC‘s steel strengthens structures and reinforces the foundations of prosperity in Saudi Arabia and the region.
Mechnical Properties of SABIC Steel Rebars

Standard Diameter mm Grade Nominal Strength MPa (min.) Yield Strength MPa (min.) Tensile to Yield Ratio (min.) Tensile in 200 mm (min.) Elongation (A5) (min.) Elongation (min.) Agt %
SASO ASTM A615M 280(40) 12
14 – 18
280 420 N/A 12 N/A N/A
420(60) 12 – 20
25
32 – 40
420 620 N/A 9
8
7
N/A N/A
520(75) 12- 25
32 – 40
520 690 N/A 7
6
N/A N/A
SASO ASTM A706M 420(60) 12 – 20
25 – 36
40
420 – 540 550 1.25 14
12
10
N/A N/A
BS 449 460B 12 – 40 460 N/A 1.08 N/A 14 5
BS 449 B500B 12 – 32 500 N/A 1.08 N/A N/A 5
GCC Standard GS06/
ISO 6935-2
B400BR
B400BWR
12 – 40 400 N/A 1.08 N/A 14 5
B500BR
B500BWR
12 – 32 500 N/A 1.08 N/A 14 5

Chemical Composition of SABIC Steel Rebars

Standard Grade Chemical composition % (maximum)
C Si Mn S P N Cu C.E.V.
SASO ASTM
A615
280/420/520
(40/60/75)
0.06
SASO ASTM
A706M
420(60) 0.3 0.045 0.035 0.55
BS 4449 460(B) 0.25 0.05 0.05 0.012 0.51
BS 4449 B500B 0.22 0.05 0.05 0.80 0.50
GCC Standard B400BR / B500BR 0.06 0.06
GS06/ ISO
6935-2
B400BWR / B500BWR 0.22 0.60 1.60 0.05 0.05 0.012 0.50
